Accurate scale drawings are the foundation of reliable technical illustrations, architectural plans, engineering layouts, and CAD projects. A drawing that looks polished but uses the wrong scale can cause manufacturing errors, construction delays, material waste, and costly revisions. Whether you are preparing a floor plan, a mechanical part, or an installation diagram, scaling must be treated as a controlled technical process, not a visual guess.
TLDR: Correct scaling starts with choosing a suitable scale, confirming units, and checking dimensions before sharing or printing the drawing. For example, if a room that measures 5 meters in reality is drawn at 1:50, it should appear as 100 millimeters on paper. In professional CAD workflows, even a 2% scaling error can create serious fit problems when parts are fabricated or installed. Always verify with at least one known reference dimension before final approval.
Table of Contents
Why Scale Accuracy Matters
Scale drawings translate real-world dimensions into a smaller or larger, manageable representation. In architecture, a building plan may be drawn at 1:100. In mechanical design, a small component may be enlarged at 5:1 to show essential details. In both cases, the relationship between the drawing and the real object must remain mathematically consistent.
Incorrect scale can lead to practical failures. A cabinet that appears to fit on a layout may block a doorway when built. A machine part that is exported at the wrong unit setting may arrive from fabrication ten times too large or too small. These are not minor presentation issues; they are technical risks.

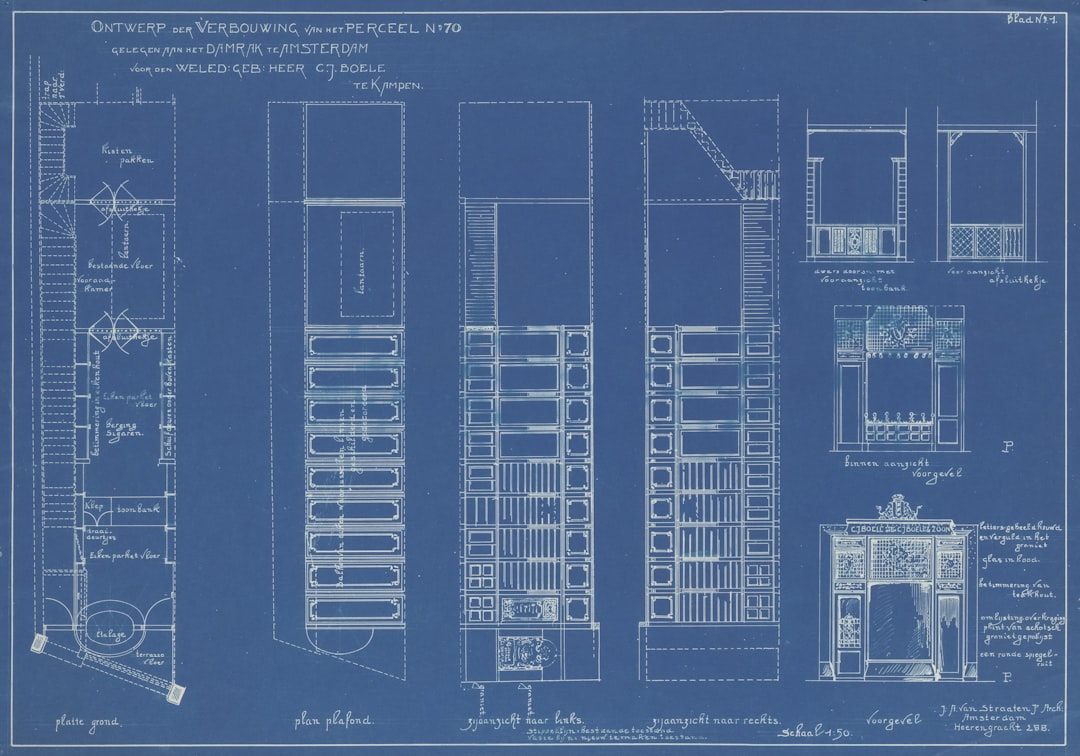

Understand the Scale Ratio
A scale ratio expresses the relationship between the drawing size and the actual size. The first number usually represents the drawing, and the second represents reality. For example:
- 1:1 means the drawing is full size.
- 1:10 means 1 unit on the drawing equals 10 units in reality.
- 1:50 means 1 unit on the drawing equals 50 units in reality.
- 2:1 means the drawing is twice the real size.
The key principle is that the unit does not matter as long as it is consistent. At 1:20, 1 centimeter on paper equals 20 centimeters in reality, and 1 millimeter equals 20 millimeters. Problems usually appear when users mix millimeters, centimeters, meters, or inches without checking the conversion.
Choose the Right Scale for the Purpose
Not every scale is suitable for every project. A large site plan needs a different scale than a detailed joinery drawing. The correct scale should show enough information without overcrowding the page.
Common technical drawing scales include:
- 1:500 or 1:1000 for site plans and large land areas.
- 1:100 or 1:50 for building floor plans and elevations.
- 1:20 or 1:10 for construction details and interior elements.
- 1:5, 1:2, or 1:1 for product details, mechanical parts, and fabrication drawings.
As a rule, use the largest scale that fits comfortably on the sheet. Larger scales improve readability and reduce misinterpretation. However, they must still leave space for dimensions, notes, labels, and title block information.
Set Units Before Drawing
One of the most common CAD mistakes is beginning a project before confirming the units. A model may appear correct on screen, but if the file is set to inches while the user assumes millimeters, the output can be completely wrong.
Before drawing, confirm:
- The project unit system: metric or imperial.
- The base unit: millimeters, centimeters, meters, inches, or feet.
- The drawing scale for printed sheets or viewports.
- The dimension style and precision level.
In CAD projects, it is often best practice to draw the object at real size in model space and apply scale only in layout, viewport, or print settings. This reduces calculation errors and keeps the geometry reliable for measurement, coordination, and export.

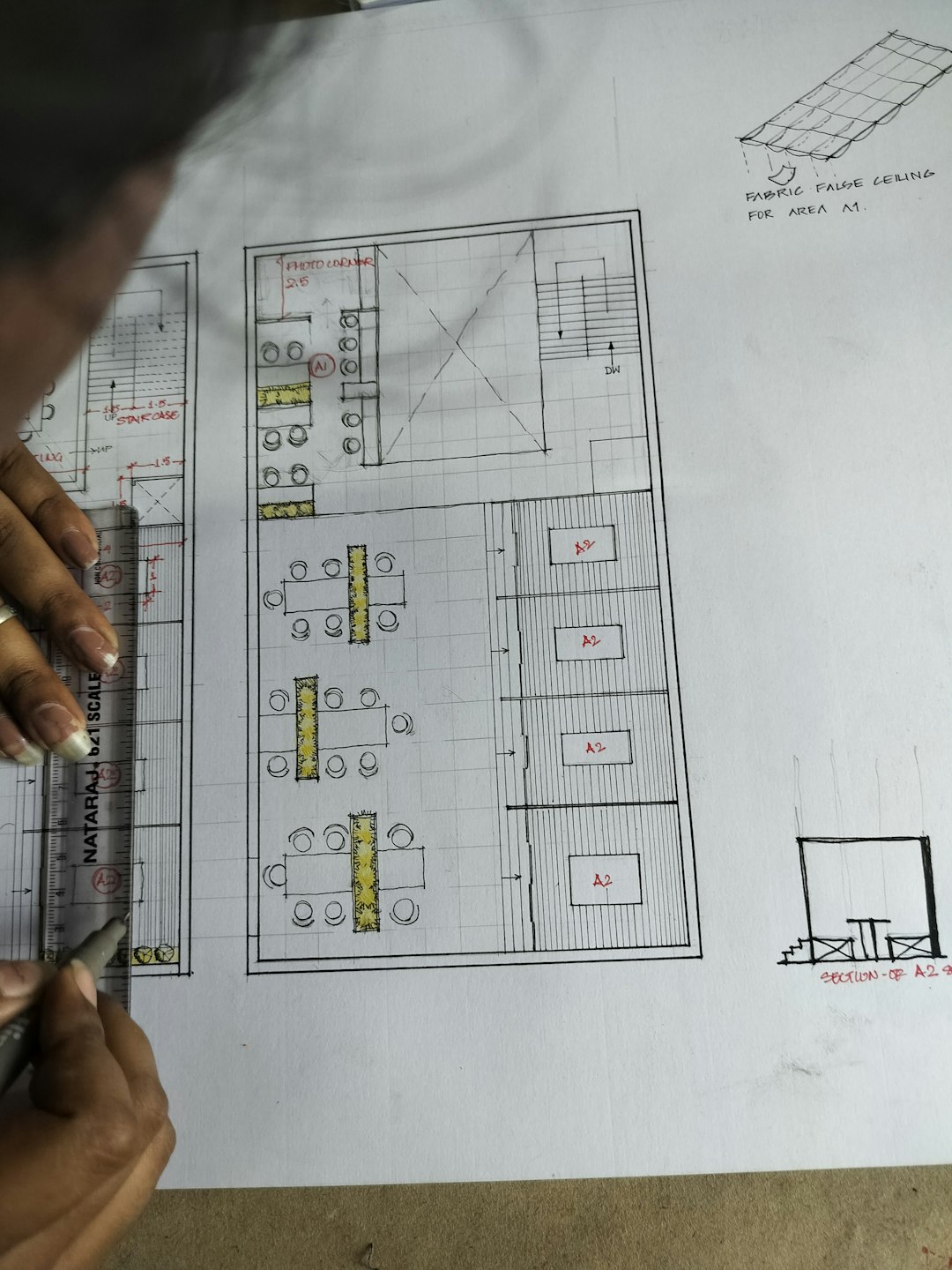

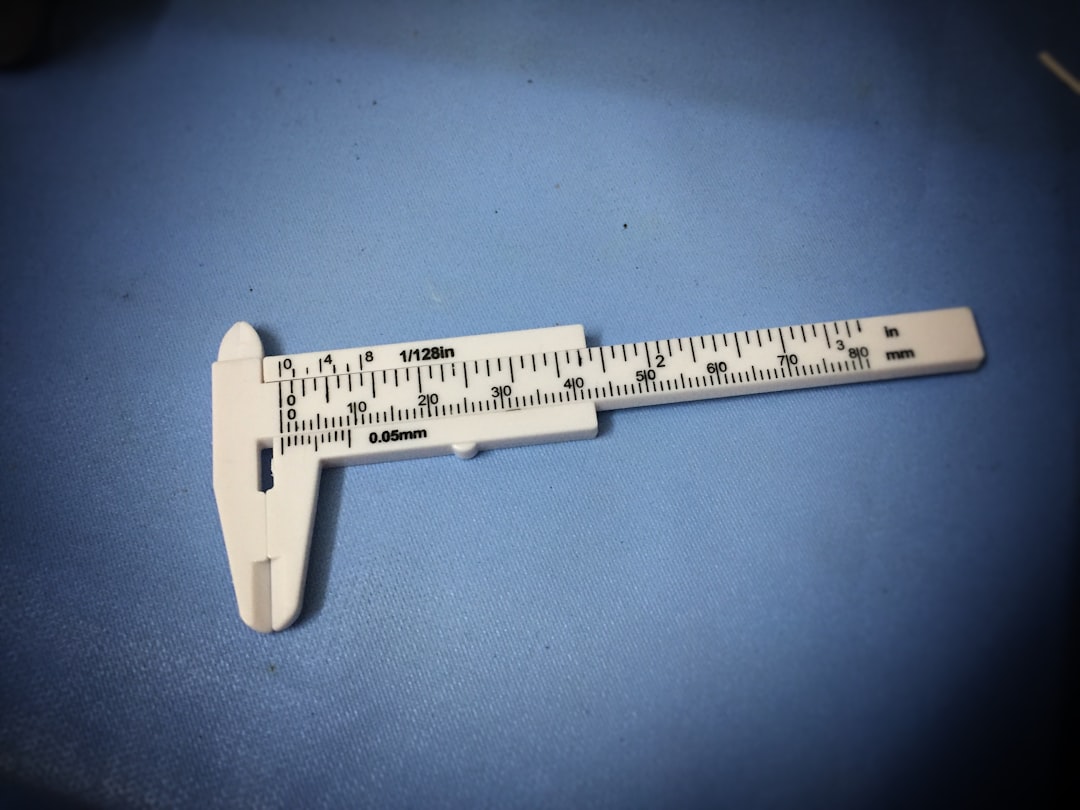

Use Reference Dimensions to Verify Scale
A reliable scale drawing should always include at least one confirmed reference dimension. This may be a wall length, door width, machine diameter, grid spacing, or known component size. After scaling or importing a file, measure that reference and compare it with the expected value.
For example, if a standard door opening is specified as 900 mm, measuring it in the CAD file should return exactly 900 mm when working in real-size model space. If it returns 90 mm or 9,000 mm, the issue is likely a unit conversion or import scale error.
Be Careful When Importing PDFs, Images, and DWG Files
Imported files are frequent sources of scaling problems. PDF plans, scanned drawings, raster images, and files from other consultants may not preserve scale correctly. Even when a PDF includes a printed scale, it may have been resized during scanning, exporting, or printing.
When importing external content, follow this disciplined process:
- Import the file into your CAD or illustration software.
- Identify a known dimension shown on the drawing.
- Measure it digitally using the software’s measurement tool.
- Calculate the scale factor if the measured value is incorrect.
- Resize the imported file and verify again with a second dimension.
Never assume that an imported drawing is accurate simply because it looks proportional. Visual appearance is not a substitute for measurement.

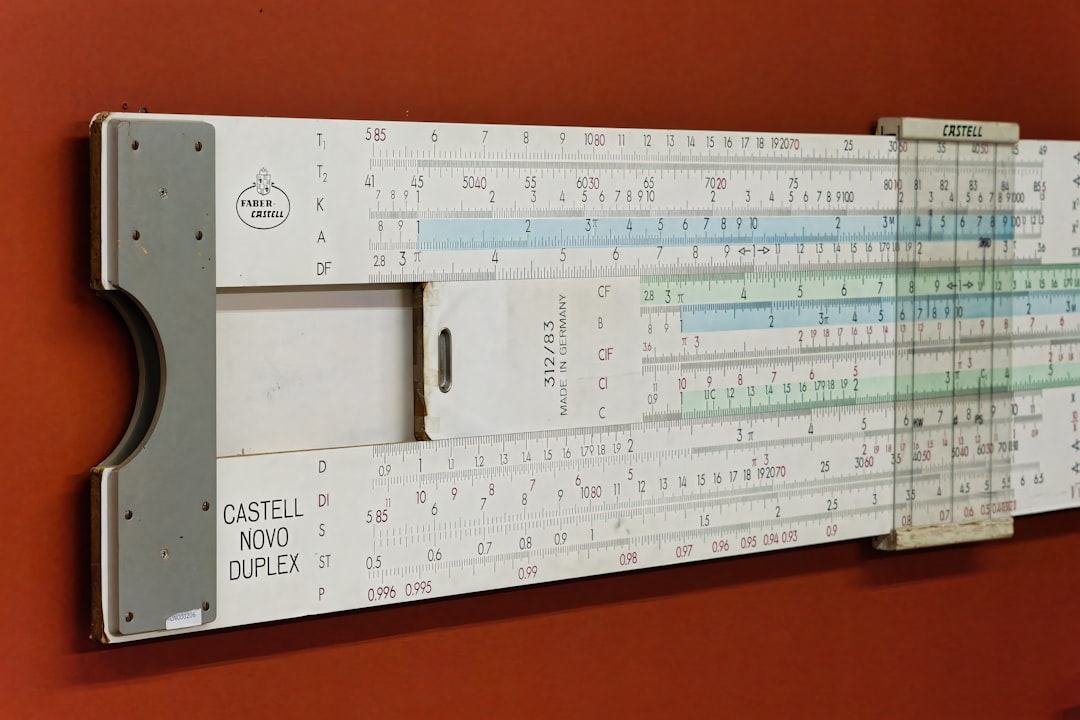

Calculate Scale Factors Correctly
When resizing drawings, the scale factor is calculated by dividing the correct real-world measurement by the current measured value. For example, if a wall should be 6000 mm but measures 3000 mm in the file, the scale factor is:
6000 ÷ 3000 = 2
This means the drawing must be enlarged by a factor of 2, or 200%. If the wall should be 6000 mm but measures 12,000 mm, the factor is:
6000 ÷ 12000 = 0.5
This means the drawing must be reduced to 50%. Always recheck after scaling. A single calculation error can affect every dimension that follows.
Control Printed Output
Many scale errors happen at the printing stage, not during drawing. A CAD file may be correct, but if the print dialog uses fit to page, shrink oversized pages, or an incorrect paper size, the printed drawing will not be true to scale.
Before issuing printed drawings, confirm:
- The correct paper size, such as A1, A3, Letter, or Tabloid.
- The intended plot scale, such as 1:50 or 1:100.
- That automatic page scaling is disabled.
- That a graphic scale bar is included where appropriate.
- That a test measurement on the print matches the stated scale.
A graphic scale bar is especially useful because it remains valid if the drawing is reduced or enlarged later. A written scale such as “1:100” becomes unreliable if the sheet is printed at a different size.
Maintain Consistent Line Weights and Text Sizes
Scaling is not only about geometry. Technical illustrations must remain readable at the final output size. Lines that look clear on screen may become too thin when printed. Text that appears acceptable in a zoomed-in view may be unreadable on a plotted sheet.
Use standardized line weights and text heights for your discipline. For example, architectural drawings commonly use heavier lines for cut elements and lighter lines for background details. Text should be sized according to printed output, not screen zoom. In CAD layouts, annotation scaling can help maintain consistent label and dimension sizes across multiple viewports.
Document the Scale Clearly
Every technical drawing should state its scale clearly in the title block, near the view, or below the drawing title. If a sheet contains multiple views at different scales, label each view separately. Do not rely on a single scale note for a sheet that includes enlarged details or reduced overview plans.
Useful scale documentation includes:
- Drawing scale: for example, 1:50 at A3.
- Units: for example, all dimensions in millimeters unless noted otherwise.
- Revision information: to track changes that may affect scale or layout.
- Scale bar: especially for site plans and presentation drawings.
Final Quality Checklist
Before sending a technical illustration or CAD drawing to a client, contractor, manufacturer, or printer, perform a final scale audit. This should be part of your quality control process, not an optional step.
- Confirm the drawing units are correct.
- Measure at least two known reference dimensions.
- Check viewport and layout scale settings.
- Disable unwanted print scaling.
- Review text, dimensions, and line weights at final output size.
- Confirm that all views with different scales are labeled correctly.
Scaling drawings correctly requires discipline, but the process is straightforward when handled systematically. By setting units early, using appropriate scale ratios, verifying reference dimensions, and controlling printed output, you reduce risk and improve professional confidence in your work. In technical illustration and CAD, accuracy is not decoration; it is the standard that makes the drawing useful.
